48 MultiVOIP Gatekeeper User Guide

25-Pin DB25 (LPT 1) Connector

This female connector, mounted on an adapter and cabled to the SBC board, is used for parallel port

LPT 1 (i.e., printer port) in this system.

Note: Top row (left to right) = Pins 1 - 13; bottom row = 14 - 25.

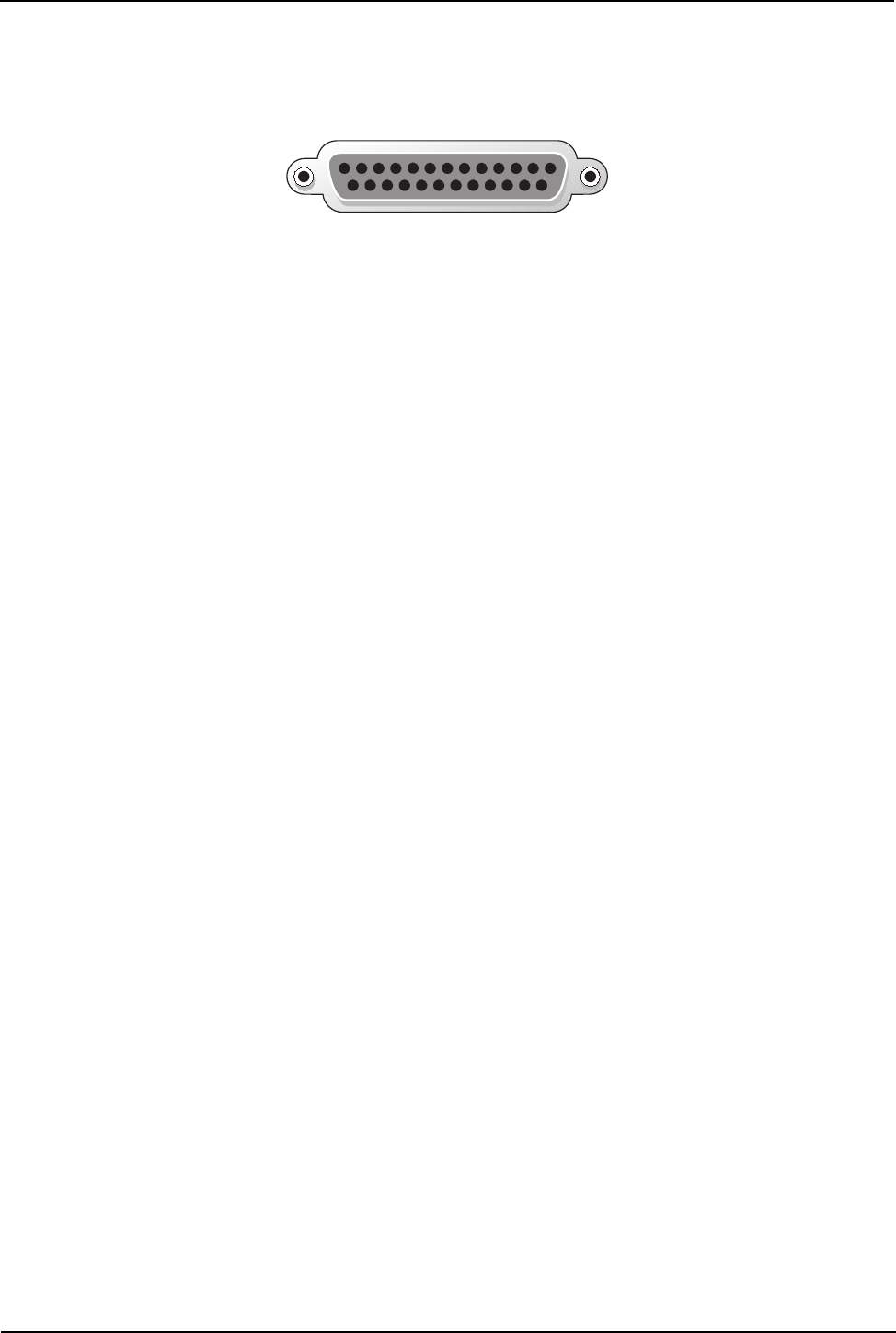

Figure A-4. 25-Pin DB25 LPT1 Parallel (Printer) Connector

Pin Identification

Pin Description

1 -Strobe

2 +Data Bit 0

3 +Data Bit 1

4 +Data Bit 2

5 +Data Bit 3

6 +Data Bit 4

7 +Data Bit 5

8 +Data Bit 6

9 +Data Bit 7

10 -Acknowledge

11 +Busy

12 +Paper End

13 +Select

14 -Auto Feed

15 - Error

16 -Initialize Printer

17 -Select Input

18 Ground

19 Ground

20 Ground

21 Ground

22 Ground

23 Ground

24 Ground

25 Ground
