Appendix C: Cover Pages

Multi-Tech Systems, Inc. FaxFinder Admin User Guide 126

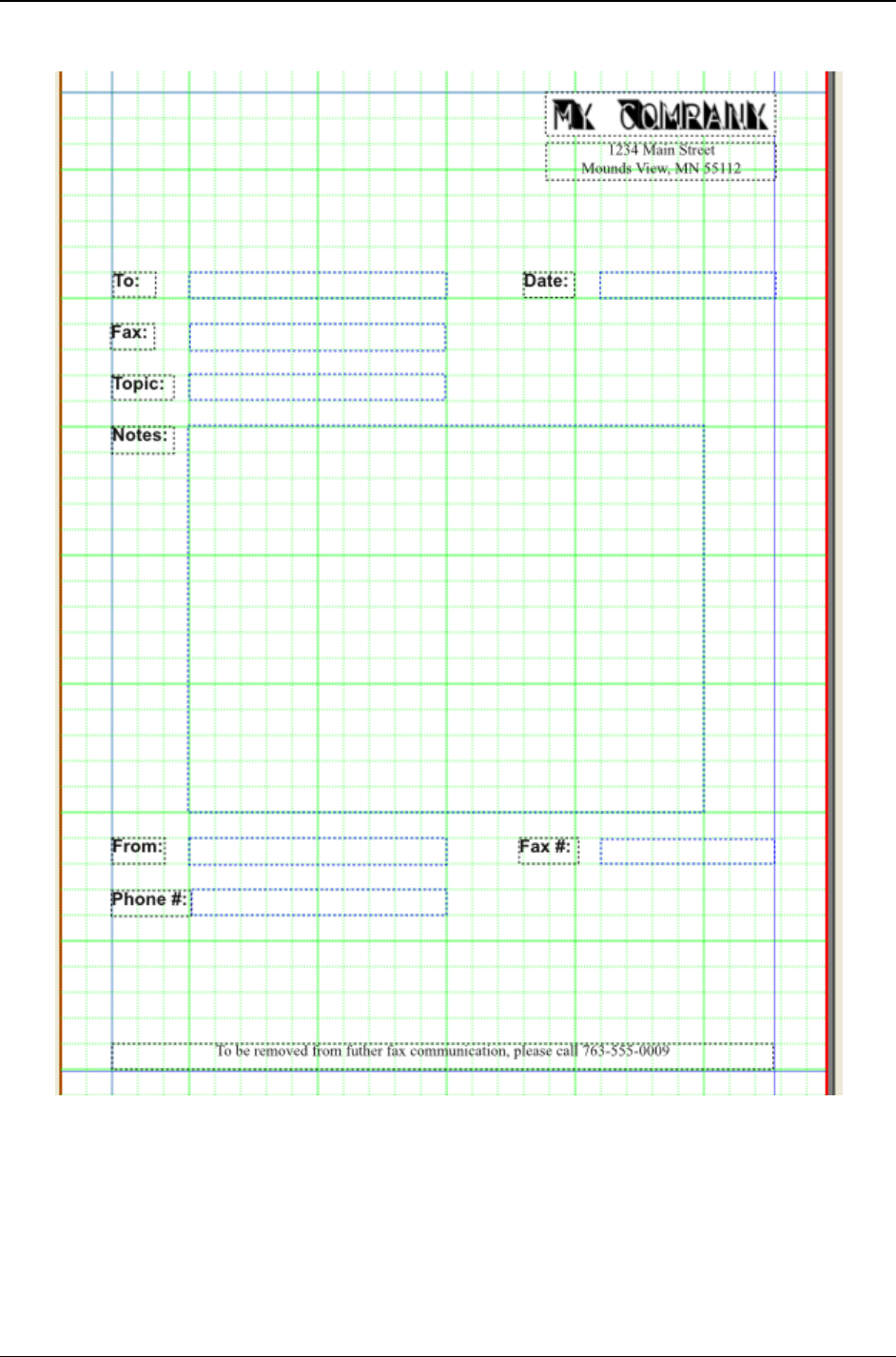

Once completed, your cover page should look similar to the example below.

At this point, you can “fine tune” your cover page by moving the fields around as needed. You may find

that you ran out of room as you got towards the bottom, so now you can left-click and hold the mouse

in the center of any box and freely move that box around. This is also a good time to align the boxes to

the green grid line so that they appear even.
