Chapter 3: FaxFinder Web Management Interface
Multi-Tech Systems, Inc. FaxFinder Admin User Guide 51
Cover Pages
PDF Cover pages to be used with your FaxFinder unit need to be version 1.4 to work properly.
Editable cover pages in Scribus format
Clicking on this link will open cover pages that have been created with the Scribus software that
you can edit to fit your specific needs. You will have to have already installed the Scribus
software in order to be able to open and edit these files. A description of how to use the Scribus
software is provided in the appendix of this manual.
Add
Click on the Add
link to open the Add Cover Page screen detailed below.
Cover Page
This column lists the file names of available cover pages as links. Clicking on the name will open
the file for viewing.
Action
Delete
Clicking this link will delete the cover page permanently from the FaxFinder unit.

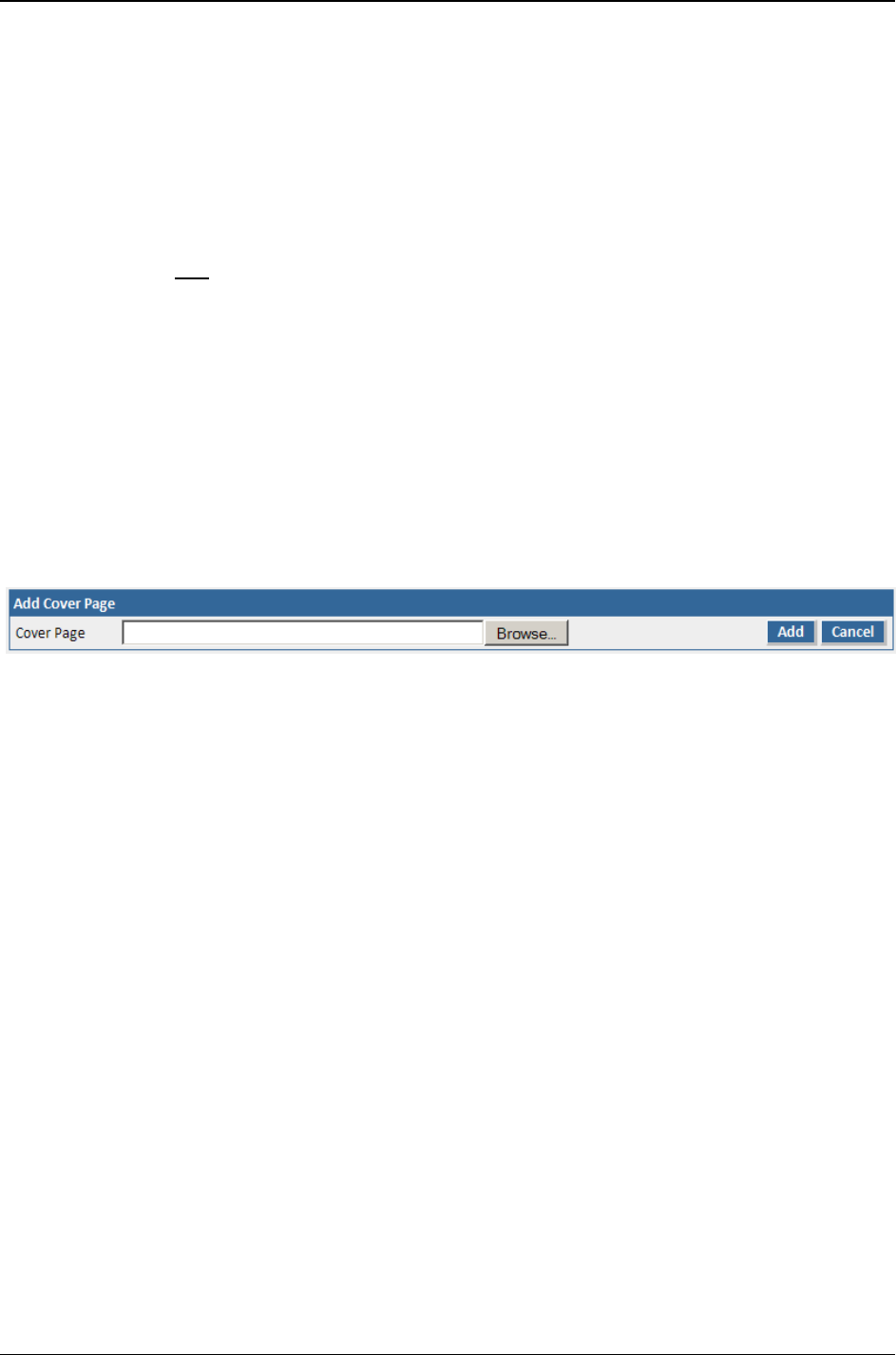

Add Cover Page
Clicking the Add link will take you to the Add Cover Page screen where you can browse to an existing
cover page design (PDF file type) that you want to make available as an option on this FaxFinder unit.
Even though the browse button allows multiple file types to search for, only PDF files are allowed.
Add button
Click the add button to save the cover page you browsed to and save it to the FaxFinder unit.
Cancel button
Click the cancel button to discard changes and return to the previous screen.
